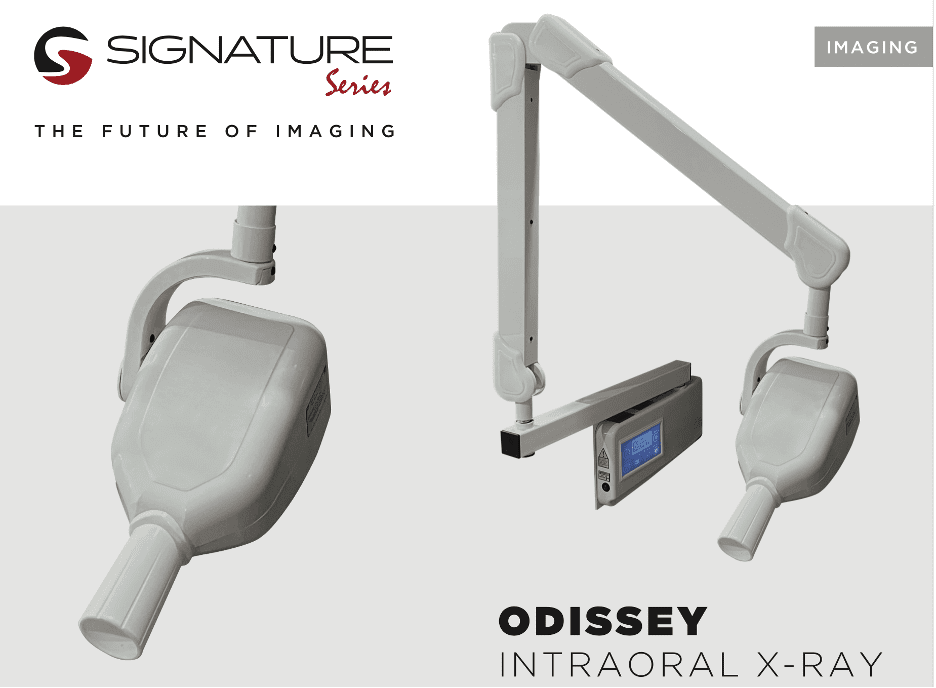

ODISSEY IntraOral Xray - Signature Series FDA - Digital
Product Description
Exposure for Conventional or Digital Radiology
FDA Approved
Fully compatible with the Digital Radiology Sensor systems (Radiovisiographs) available on the market.
The ODISSEY model has an Intelligent Control Panel that allows the user to program the different exposure times, according to the type of patient and the cavity to be examined, which allows optimizing the efficiency of the operation. It also has a “sequential configuration” option that allows the operator to configure parameters in an orderly manner: tooth type, patient type, voltage and exposure time, among others; This configuration can be saved for future use. From the Control Panel you can select the different operations: Exposure for Conventional or Digital Radiography Instant or delayed emission of 5 seconds by pressing the automatic mode button. It has a security system of 10 seconds per shutter, to eliminate the effects of double radiation. The perfect balance of its “scissor” arm allows the head a wide range of safe and reliable movement. All of our ODISSEY radiographic equipment is factory tested to ensure that it meets standard radiation emission levels. The ODISSEY model has an extended warranty for three (3) years, against manufacturing defects, from the moment of purchase. All equipment manufactured for FIAD International S.A.S are supported throughout America and around the world by our technical team, which has an experience of more than 35 years in the manufacture, service and marketing of Intraoral Radiology equipment.
Technical specifications
Input Current Power Consumption Input Voltage Regulation
ODISSEY
FIAD INTERNATIONAL S.A.S 8.2 AMP
0.8 Kva @ 120V
3%
CIRCUIT BREAKERS
orimar.com/es/?page_id=11
1/2
7/29/2020
Wall Odyssey
Fuses Line Voltage Line Frequency
15A 250V 110V - 240V 50-60 Hz
HEAD SPECIFICATIONS
Output Voltage
High Voltage Circuit Type Output Current
Total Filtration
Minimum Source-Skin Distance (SSD) Maximum Symmetric Radiation Field Secondary Transformer Impedance Focal Point
70KVp
108-132 VAC Single Phase Self Rectified 8mA +/- 2mA
2.5 mm Aluminum
8 ′ ′ (20cm)
23/8 ′ ′ (6cm)
70 kohm
0.8 mm
